Real-time data monitoring and transfer to Freshliance cloud
WiFi/LAN/4G, multiple communications available for Gaea Series gateway G1000-S
APP and cloud platform for real-time data review and automated data analysis and graphing
Offline data reuploaded after network restoration, no data lost
Email/SMS/APP Push alert

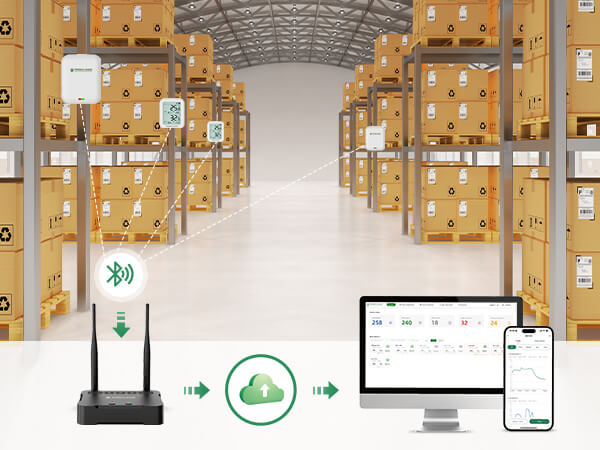

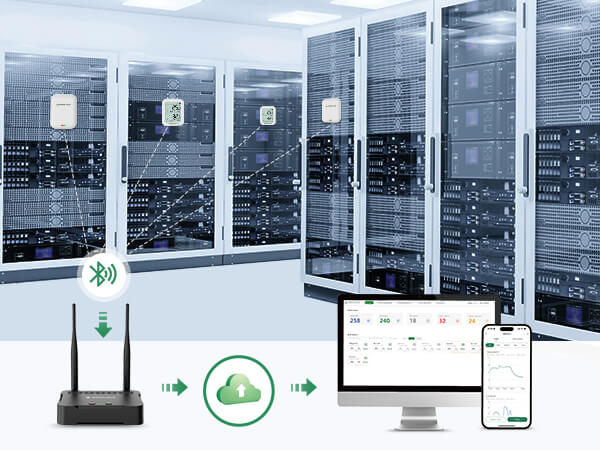

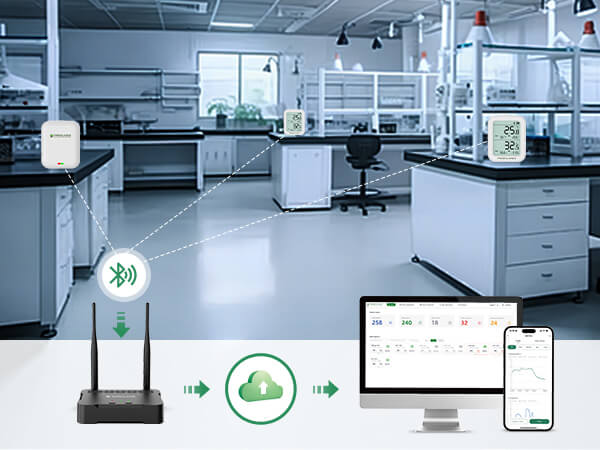

This real-time temperature and humidity monitoring system is designed for small area storage.

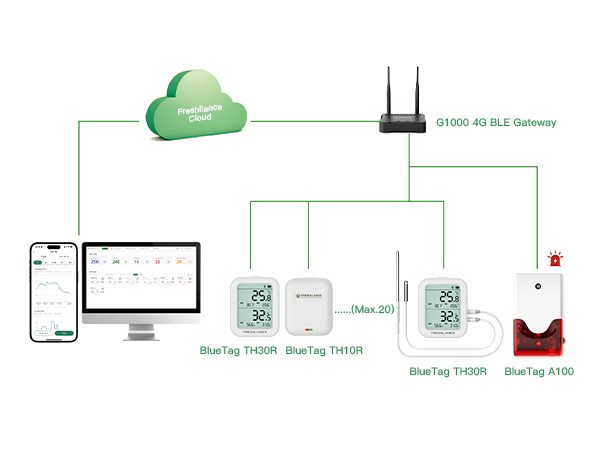

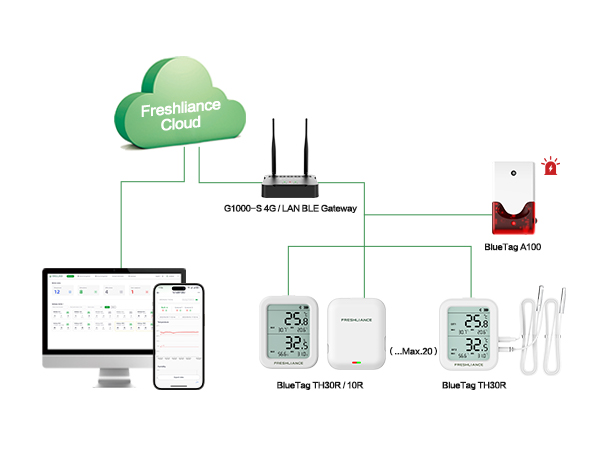

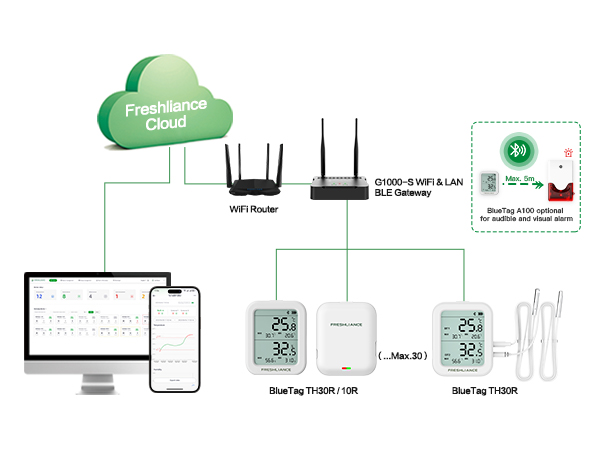

It is built up mainly based on the BlueTag series data loggers and Gaea series gateway G1000-S. BlueTag series data loggers monitor data and transmit data to G1000-S via Bluetooth; Then G1000-S transfers the data received to Freshliance cloud. All data are accessible and managed worldwide using the mobile APP FreshLink and the computer platform. Remote alarm notifications will be immediately sent by email, SMS and APP push as configured.
Real-time data monitoring and transfer to Freshliance cloud
In this solution, the Bluetooth data loggers are designed to monitor environmental data accurately, and a variety of external probes are optional, with different sensors and temperature ranges, as well as cables. All data will be transferred to the gateway via Bluetooth and then relayed to Freshliance Cloud via the gateway. Up to 20 loggers can be connected to a single gateway.

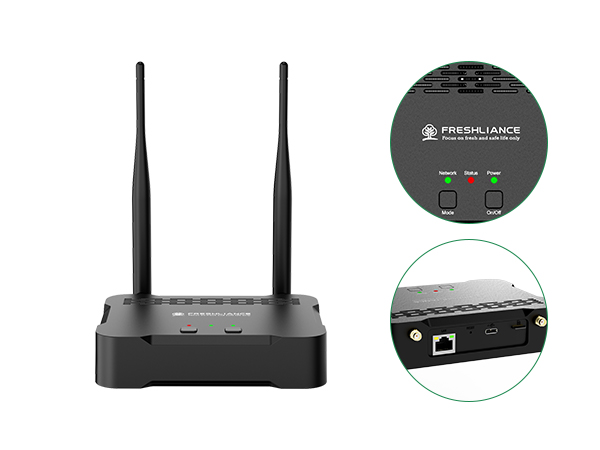

WiFi/LAN/4G, multiple communications available for Gaea Series gateway G1000-S

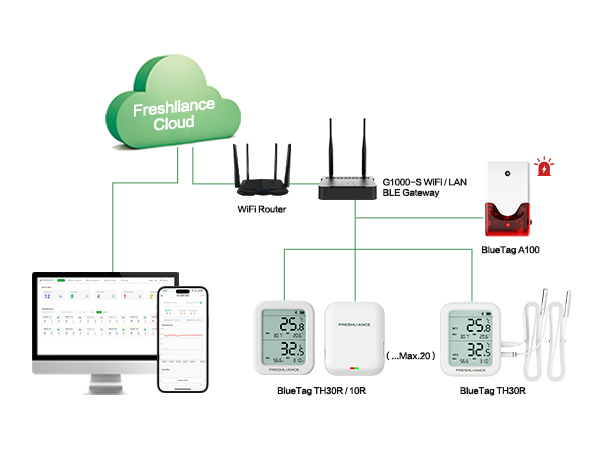

G1000-S comes with multiple communication channels, including WiFi, LAN and 4G, much more user friendly. After receiving the data from the Bluetooth loggers, the gateway will transfer the data to Freshliance Cloud via WiFi, LAN or 4G network accordingly.
APP and cloud platform for real-time data review and automated processing
The APP FreshLink and cloud platform are especially developed for device configuration, real-time data review and tracking. They make all data visible and traceable worldwide, and automatically summarize, analyze and process the data, as well as give alarm notifications.
Email, SMS and APP Push for alarm notifications
Both the gateway and the Bluetooth loggers can be freely configured and programmed, including the alarm notifications. If the preset alarm thresholds are exceeded, notifications will be sent by Email, SMS and APP push as preset. The number of messages per day and the number of messages for a single alarm can also be set as necessary.
Model | G1000-S | Antenna Type | External antenna*2 |
Communication Network | Bluetooth: Sensor to gateway WiFi/LAN/4G: Gateway to cloud | Backup Battery | 4000mAh, 3.7V/8000mAh, 3.7V |
Working Temperature | -10℃ ~ +55℃ | Working Humidity | 5%~95% RH (non-condensing) |
Power | 5V/2A, Type-C | Maximum Connections | 20 sensors |
Communication Range | 100m (Open Space) | Maximum Current | ≤ 90mA |
Bluetooth Sensors for Storage:

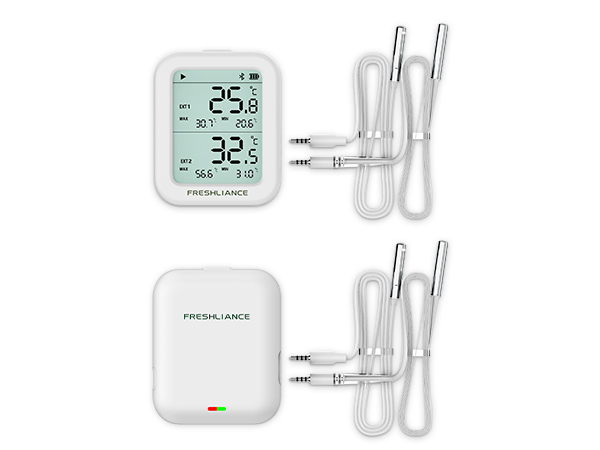

Model | BlueTag TH10R | BlueTag TH10R-I | BlueTag TH30R | BlueTag TH30R-I | BlueTag TH30R-ETU |
Communication Distance | 112m | 100m | |||
Internal Probe Type | Temperature and humidity | ||||
External Probe | Optional | √ | |||
External Probe Channels | Max. 2 probes | ||||
External Probe Type | See External Probe List | ||||
Built-in Sensor | -30℃~+70℃, ±0.5℃ F.S. | ||||
0~100%RH, ±3.0%RH | |||||
Temperature Units | ℃, ℉ | ||||
Alarms | Max. 6 Alarm Points | ||||
Report | PDF/CSV | ||||
Connection | Bluetooth 5.2 | ||||
Start Delay | 0minute~72hours | ||||
Logging Interval | 1minute ~99minutes | ||||
Memory Capacity | 20000 readings each probe | ||||
Device Dimensions | 83mm*68mm*20.5mm | ||||
Battery | Rechargeable lithium battery | ||||
Installation | Hanging, Folding stand | ||||
Weight | 80g(Main device) | 90g(Main device) | |||
External Probe List:
Sensor Type | Range | Accuracy | Insulation Option | Features |
NTC sensor | -30℃~+70℃ | ±0.5℃ (-30℃~+50℃) ±1.0℃(+50℃~+70℃) | PVC cable | Cost effective |
RTD sensor | -196℃~+200℃ | ±0.5℃ (-100℃~+80℃) ±1.0℃ (Other) | Teflon cable | Anti-high and low temperature, high corrosion resistance |
Digital temperature sensor | -90℃~+200℃ | ±0.3℃ (-40℃~+100℃) ±0.5℃ (-80℃~-40℃; +100℃~+150℃) ±1.0℃ (Other) | Silicone cable | Highly flexible, waterproof, high temperature resistance |
Temperature and humidity sensor | -40℃ ~+85℃ | ±0.5℃ F.S. | Flexible ultra thin cable | Good sealing effect, for wiring in enclosed or sealed spaces |
0-100%RH | ±3%RH (25℃, 20%~90%RH) ±5%RH (Other) | |||
Standard cable length: 2m; Customizable length available: 5m, 10m, 15m or 20m.) | ||||
Bluetooth Sensors for Logistics:
Model | BlueTag T10 | Memory Capacity | Max. 65,000 readings |
Shelf Life | 1 year | Start Delay | 0 minute-72 hours |
Battery Life | 1 year | Logging Interval | 1 minute-99 minutes |
Connection | Bluetooth 5.2 | Battery | 3.0V CR2032 lithium battery |
Communication Distance | 90m (open sapce) | Installation | 3M adhesive tape |
Temperature Unit | ℃, ℉ | Report Format | PDF & CSV |
Temperature Range | -30℃~+70℃ | Temperature Accuracy | ±0.5℃ F.S. |
Weight | 7.8 g | Dimension | 48mm*31mm*5mm |
This solution is ideal for various industries to realize real-time environmental monitoring of their supply chain management, including warehousing, storage and distribution, etc.
FreshLink
FreshLink is a mobile APP designed for Freshliance’s real time temperature monitoring solutions with the gateways, and WiFi devices, etc. It is compatible with Android and iOS systems, and is composed of five pages: Home, Manage, Group, Alarm and Download, respectively for device status, real-time and historical data, usage records, device groups, data alarms, and data reports, etc. Using this APP, users can wirelessly configure and control the gateways, and WiFi devices, etc, as well as realize remote data tracking, filtration, analysis, and export in real time.
It works with the temperature monitoring solutions based on the gateways, and WiFi devices, etc.
